Stagelite

PreviousSuper Servo (Discontinued)

Last updated 5 months ago

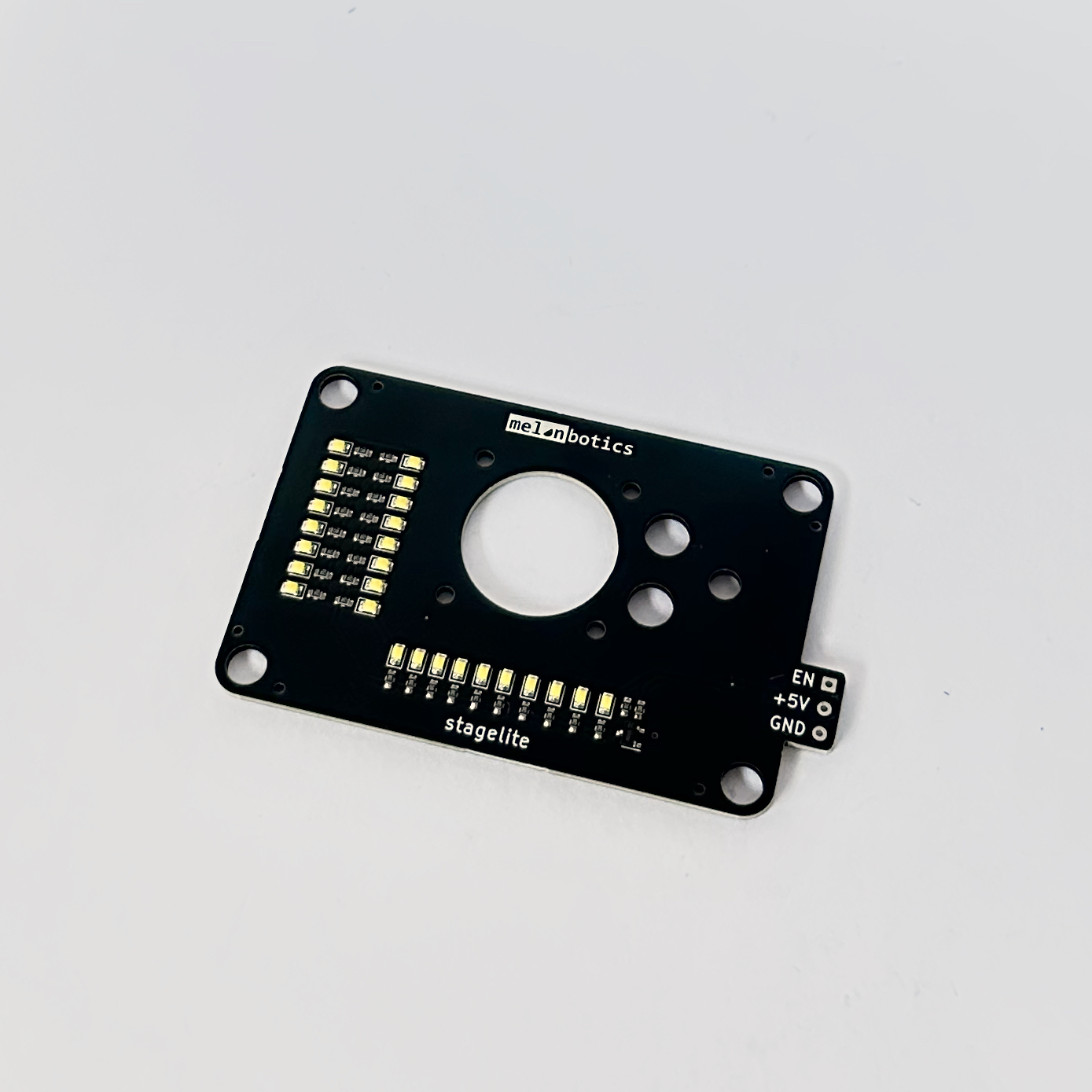

LED board to suit Limelight 3A. Controllable via control hub digital port, to prevent distracting illumination.

  • Input Voltage 5V

  • Current Draw 0.45A

  • Controllable via ENABLE pin. Pull low to disable light, leave floating/pull high to enable.

Wiring Guide

Can be connected to control hub "5V" port, to supply 5V power.

If you wish to illuminate always, only wire the +5V and GND pins. If the EN pin is left disconnected the light will be on.

If you wish to control the light in code, connect the EN line to a digital port, and set it high when you want the light to illuminate, and low when you wish it to disable.
