# Through Bore Encoder

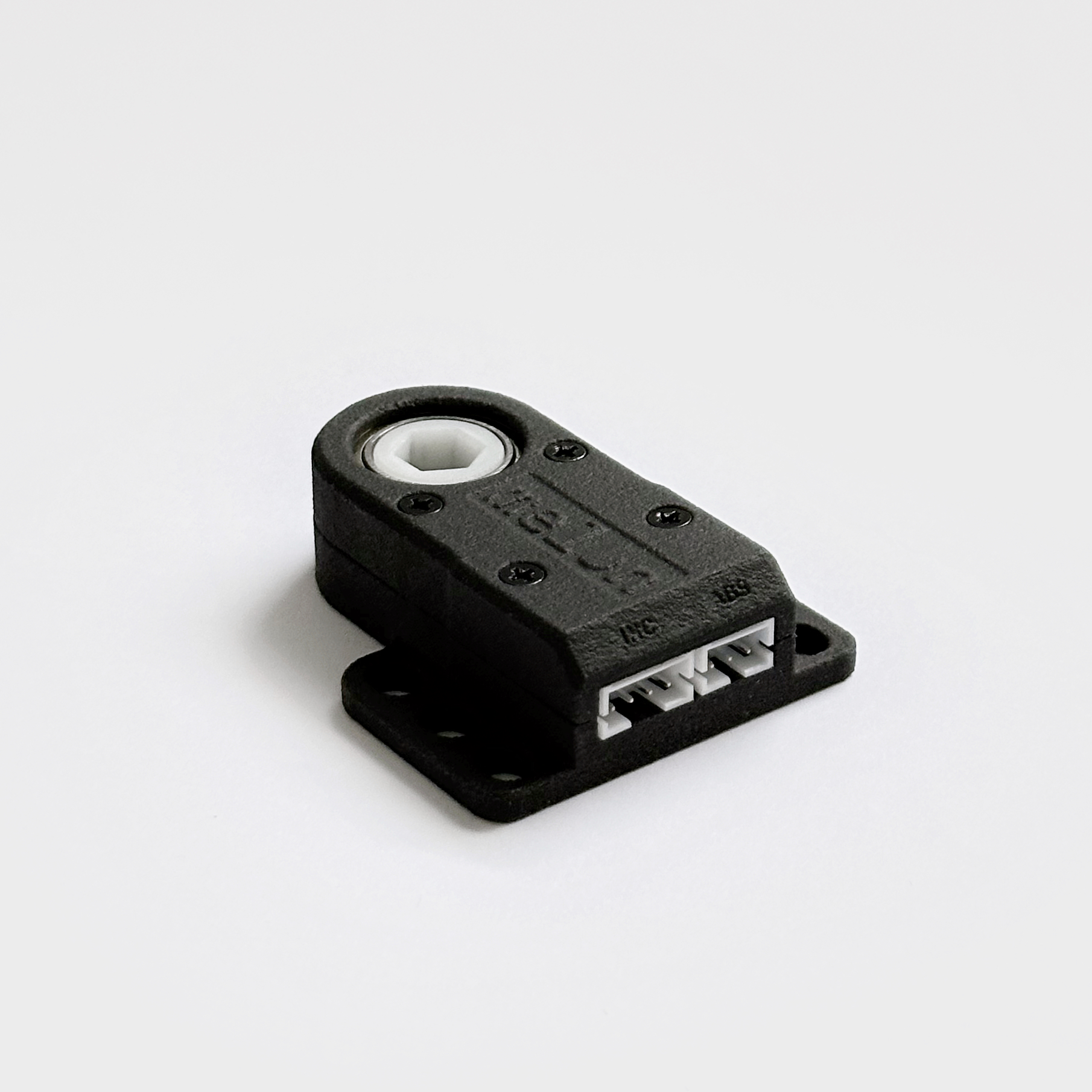

Product Information for melonbotics Encoder

<div data-full-width="false"><figure><img src="https://1580331926-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FnHZmDkFp5cOUYczo9V98%2Fuploads%2Fgit-blob-78c1fb84d936eab472b84f03839aae4ce874f3c5%2FIMG-8624.jpg?alt=media" alt="" width="375"><figcaption></figcaption></figure></div>

## Product Overview

* 7mm Hex Bore (Compatible with 8mm REX™)
* 1024CPR quadrature output resolution on 4-Pin JST
* Absolute analog position output on 3-Pin JST
* Optimized for 8mm build patterns
* Durable SLS Nylon construction

## CAD Download

{% file src="/files/l8JpkVEftqQxSrr87ETC" %}

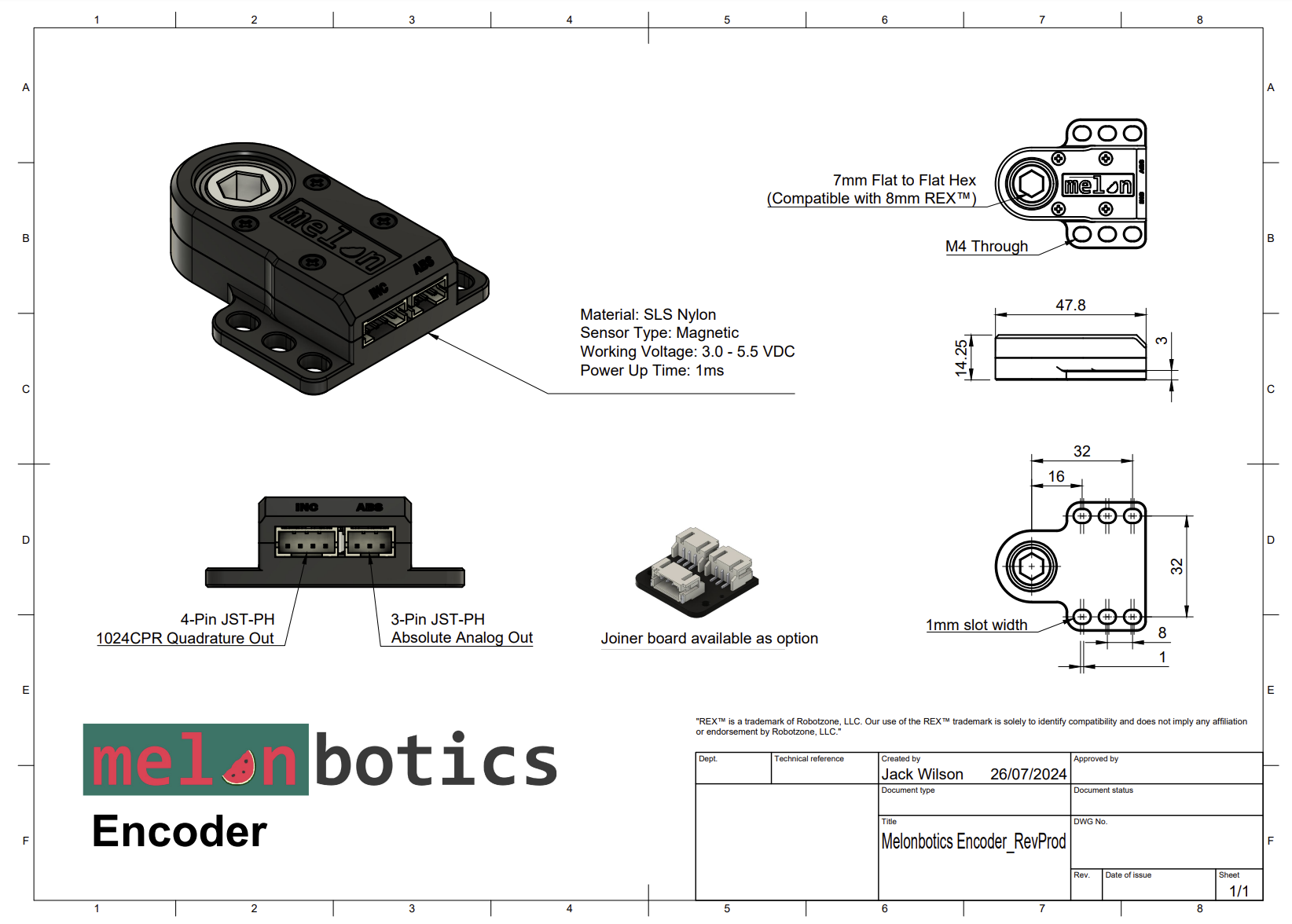

## Mechanical Dimensions

<figure><img src="https://1580331926-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FnHZmDkFp5cOUYczo9V98%2Fuploads%2Fgit-blob-cbb4588e0015140ac9fc93a6fb60b2e410a812e4%2FMelonbotics_Encoder_Drawing.png?alt=media" alt=""><figcaption></figcaption></figure>
