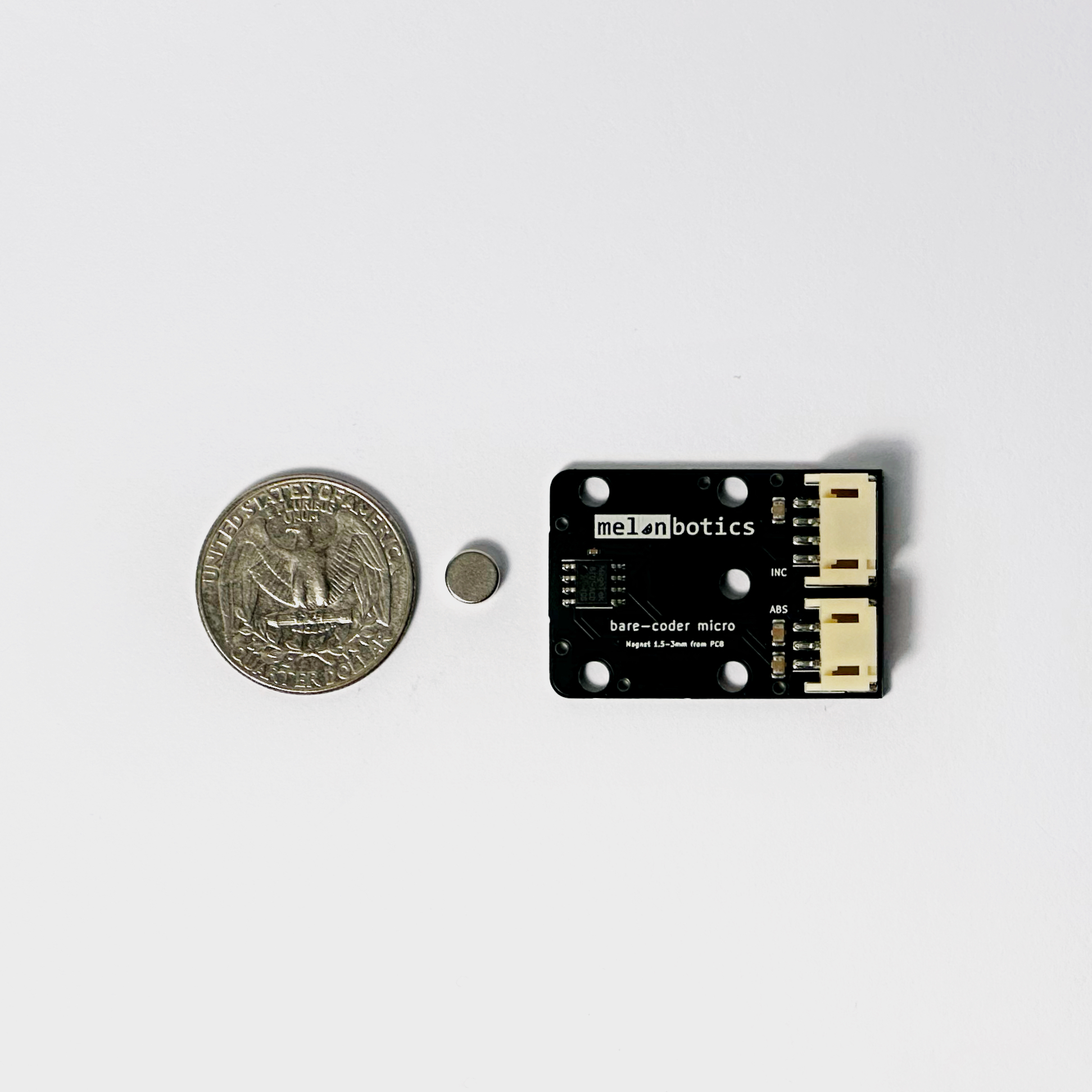

# Barecoder Micro

<figure><img src="/files/K9COB7ZOjvc0OHzKHS9d" alt="" width="375"><figcaption></figcaption></figure>

## Product Overview

* Super compact magnetic encoder board
* 1024CPR quadrature output resolution on 4-Pin JST
* Absolute analog position output on 3-Pin JST

## CAD Download

{% file src="/files/qSPJSt2uHB1t04XKFrjP" %}

## Magnet Mounting Directions

The included magnet should be positioned within 1.5mm-3mm from the top of the PCB. Sensing from the backside, through the PCB is possible, however is at your own risk. If done, the magnet needs to be <0.5mm from the back of the PCB to ensure sensor operation.

## Absolute Output

[How to use analog output](/through-bore-encoder/how-to-use-analog-output.md)


---
