# Super Servo Plus

<figure><img src="/files/d1V9NERg70imgchB0vXH" alt="" width="375"><figcaption></figcaption></figure>

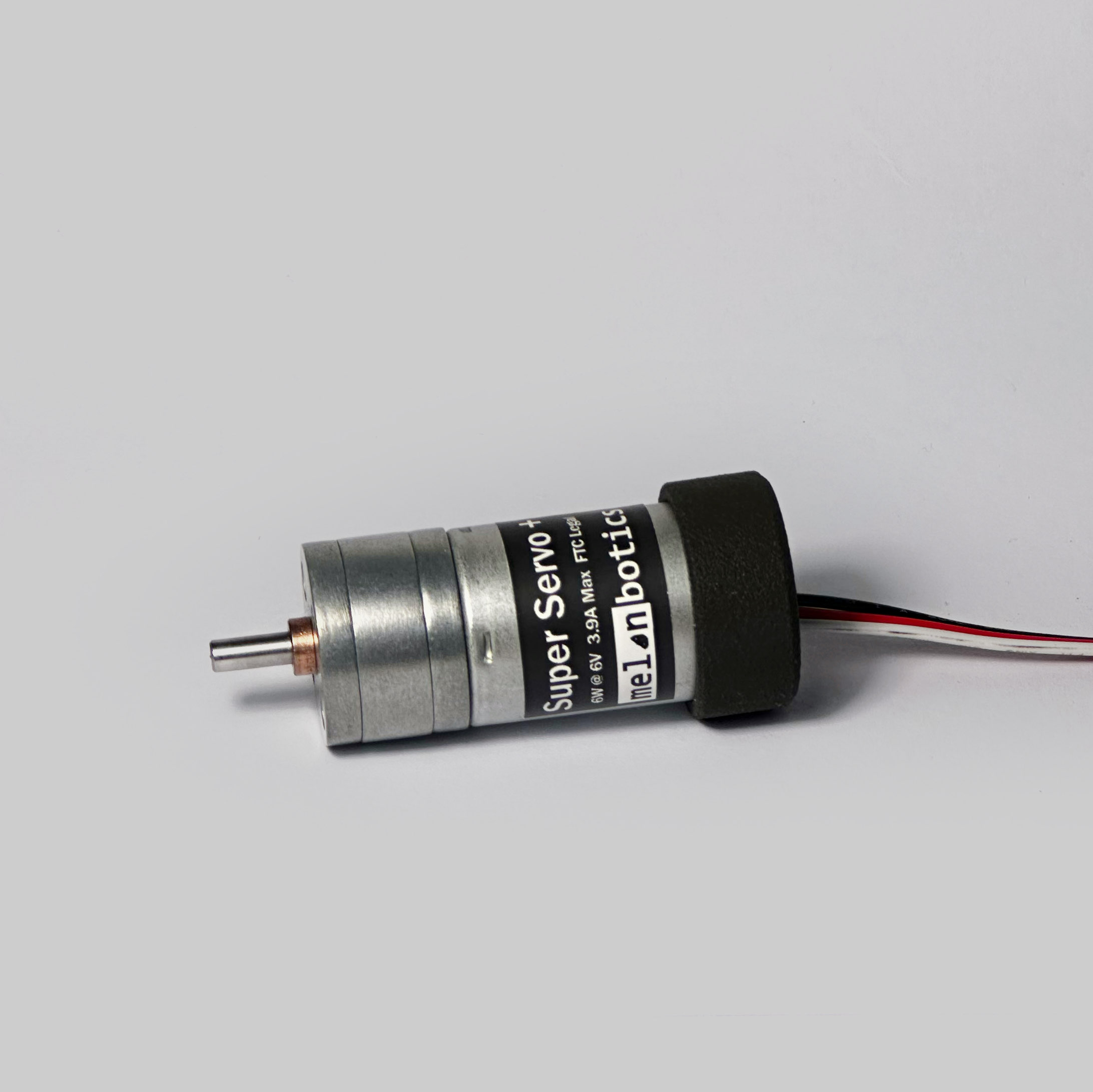

The melonbotics Super Servo Plus is a high performance continous rotation servo, perfectly suited for applications where a high rotation speed is needed with minimal weight. This is **the** servo to use for lightweight and fast intakes and outakes.

The optional mounting plate, selectable at checkout, allows effortless mounting of the Super Servo to 8mm pitch build systems.

## Product Overview

* High speed, continuous rotation servo
* Power Output 6W @ 6V
* Free Speed 1000RPM (0.01 sec/60°)
* Stall Torque 2.3 kgf·cm
* Stall Current 3.9A
* Free Current 0.16A
* Weight 90g

## CAD Download

{% file src="/files/NM6P6iIMJ2zZYk0pOaxU" %}
Just the Servo
{% endfile %}

{% file src="/files/iBK4S6pfwIuswSisNyse" %}
Servo with Mounting Plate
{% endfile %}
